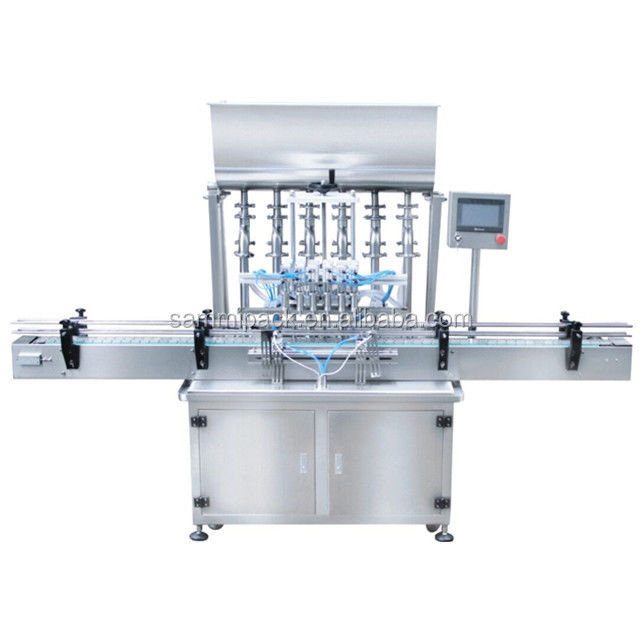

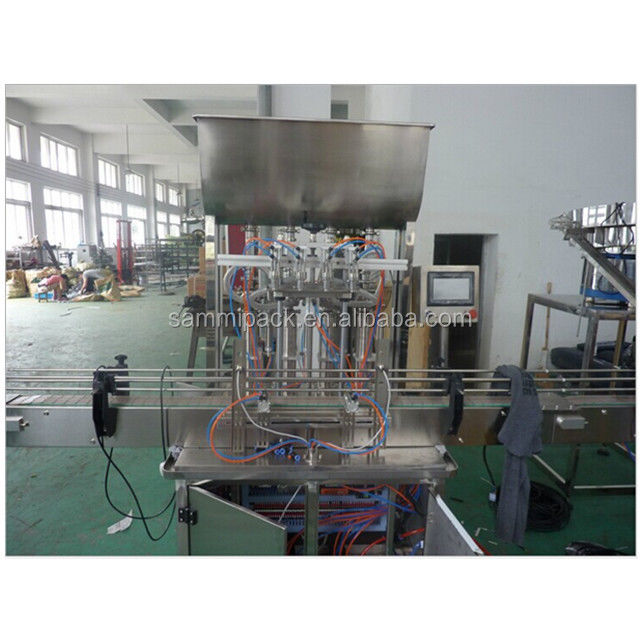

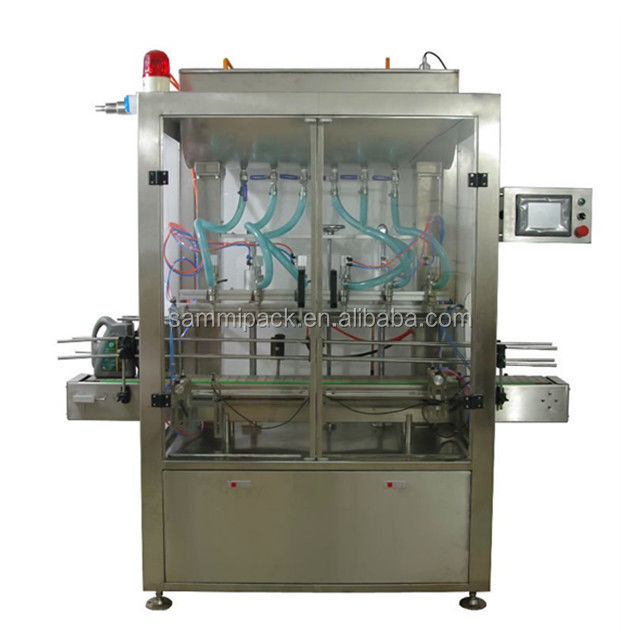

Double Nozzles Automatic Mineral Water Bottle Automatic Soap Filler Detergent Liquid Filling Machine

automatic liquid filling machine

double nozzle soap filler

mineral water bottle filler

Skontaktuj się z nami

Poproś o wycenę

Double Nozzles Automatic Mineral Water Bottle Automatic Soap Filler Detergent Liquid Filling Machine

Szczegóły produktu

机器产能:

500 瓶每小时

应用:

食品, 饮料, 化学品

包装类型:

易拉罐, 瓶, 自立袋, 包, torebka

包装材料:

木质

自动化程度:

Pokaż wszystko

动力类型:

气动

ciśnienie elektryczne:

220 V

原产地:

Guangdong, Chiny

Pokaż:

Sammi

尺寸 (长 × 宽 × 高):

2000 * 550 * 1800 mm

保修期:

1 dzień

核心卖点:

高生产率

填充物料:

水, olej, sok

灌装精度:

1 g, 液体 ≤ ± 1%, 糊状物 ≤ ± 2%

机械测试报告:

可提供

视频出厂验货:

可提供

核心组件:

PLC

填充范围:

(10-100ml)* 6

空气压力:

4-6kg/cm2

充填速度:

30-50 瓶/分钟

保修时间:

1 dzień

工作头:

价格:

竞争力

质量:

符合出口标准

应用程序:

医疗

营销类型:

2020 年新产品

类型:

罐装机

状态:

Nowy

适用行业:

食品饮料加工厂, 食品店, 餐饮店, 食品饮食加工厂, 食品店, 餐饮店, 食品饮料加工厂, 食品店, 餐饮店, 食品饮料 przetwórnia

展示厅地点（在海外哪些国家有样品间）:

Żadnego

核心组件质保期:

1 dzień

重量:

450 kg

Podkreślić:

automatic liquid filling machine

double nozzle soap filler

mineral water bottle filler

Warunki płatności i wysyłki

Minimalne zamówienie

1 SET

Cena

$3,000-3,600 / set

ZAŁĄCZONE PRODUKTY

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Najlepszą cenę

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Najlepszą cenę

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Najlepszą cenę

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

4 head liquid filling machine

Product Description

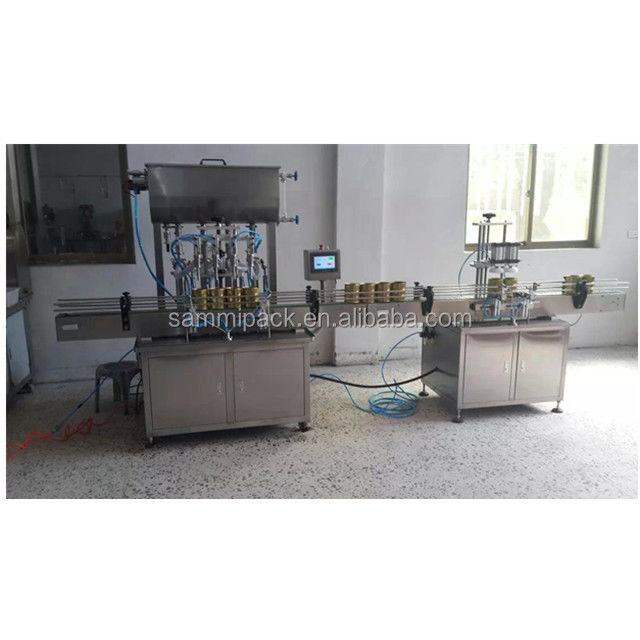

Automatic Liquid Filling Production Line: quick and accurate filling with Taiwan's AirTac component.

Automatic Liquid Filling Production Line 6 Nozzle:

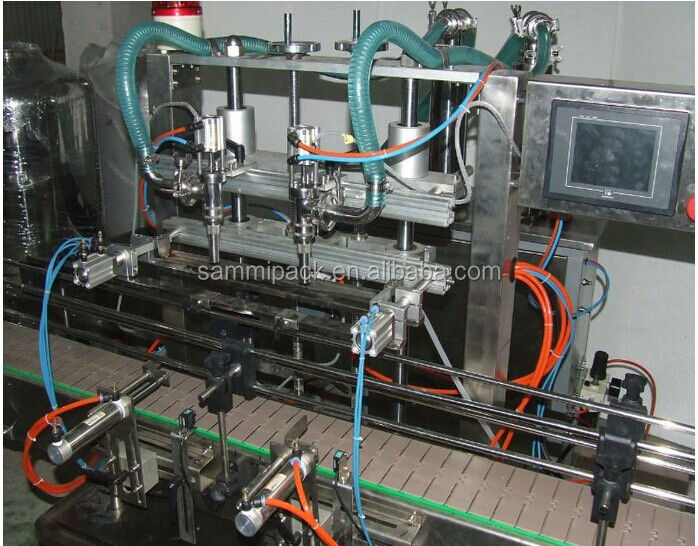

This Model is special for Filling Production Line, and it is simple and reasonable in design, high in accuracy and easy in operation. Suitable for filling liquid in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises' requirements. This machine is the semi-automatic double piston liquid filling machine, working under the state without electricity, it is safer to operate. This machine has two filling heads in-phase, improving the work efficiency. And the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan's AirTac. The part contacting materials is made of 316L stainless steel. With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy. Filling head adopts anti-leakage, anti-pull and with diving filling device.

Parameter of 6 head filling machine

Machine model	SM-100-2	SM-300-2	SM-500-2	SM-1000-2	SM-2500-2	SM-5000-2
Filling range	(10-100ml)×6	(30-300ml)×2	(50-500ml)×2	(100-1000ml)×2	(250-2500ml)×2	(500-5000ml)×2
Air pressure	4-6kg/cm²	4-6kg/cm²	4-6kg/cm²	5-8kg/cm²	5-8kg/cm²	5-8kg/cm²
Air pressure	4-6kg/cm²	4-6kg/cm²	4-6kg/cm²	5-8kg/cm²	5-8kg/cm²	5-8kg/cm²
Filling speed	30-50bottles/min	30-50bottles/min	30-50bottles/min	30-50bottles/min	30-50bottles/min	20-40bottles/min
Filling precision	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%

Packaging & Shipping

Payment Term:	T/T, L/C, Western Union, PayPal, Credit card, trade assurance
Package:	export standard wooden case & cartons, honeycomb paperboard case
Delivery Time:	1-3 days after payment
transportation:	by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc)
Shipping Time:	A, by express:about 5 days to arrive shipping destination,door to door service
	B, by air: about 7 days to destination airport
	C, by sea:15-30 days to destination port
