High Quality Double Heads Pneumatic Piston Milk Filling Machine, Liquid Detergent,shampoo,bath Gel Filler(500-5000ml)

double heads pneumatic filling machine

milk filling machine 500-5000ml

automatic liquid detergent filler

Skontaktuj się z nami

Poproś o wycenę

High Quality Double Heads Pneumatic Piston Milk Filling Machine, Liquid Detergent,shampoo,bath Gel Filler(500-5000ml)

Szczegóły produktu

机器产能:

500 瓶每小时

应用:

饮料, 化学品, 日用品, 食品

包装类型:

kartka papierowa

包装材料:

木质

自动化程度:

半自动

动力类型:

Elektryczne

ciśnienie elektryczne:

220V50HZ

原产地:

Chiny

Pokaż:

Sammi

尺寸 (长 × 宽 × 高):

96*45*38mm

保修期:

1 dzień

核心卖点:

高精度

填充物料:

Inne, 牛奶, 水, olej, sok

机械测试报告:

可提供

视频出厂验货:

可提供

核心组件:

PLC

Zastosowanie:

medyczny

Lokalizacja usługi lokalnej:

Żadnego

Rodzaj wprowadzania do obrotu:

Nowy produkt 2020

类型:

罐装机

状态:

Nowy

适用行业:

生产车间, 食品饮料加工厂, 饭店, 食品店, 餐饮店

展示厅地点（在海外哪些国家有样品间）:

Żadnego

核心组件质保期:

1 dzień

重量:

40,0 kg

Podkreślić:

double heads pneumatic filling machine

milk filling machine 500-5000ml

automatic liquid detergent filler

Warunki płatności i wysyłki

Minimalne zamówienie

1 SET

Cena

$400-600 / set

ZAŁĄCZONE PRODUKTY

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Najlepszą cenę

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Najlepszą cenę

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Najlepszą cenę

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Najlepszą cenę

Skontaktuj się z nami

Skontaktuj się teraz

Opis produktu

Feature:

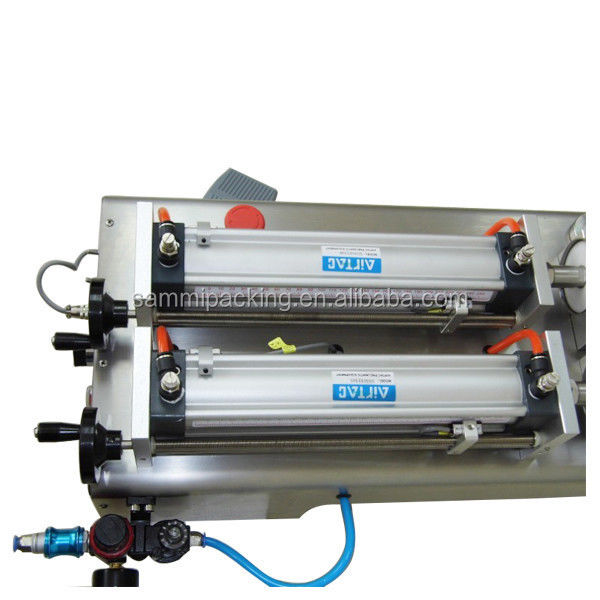

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

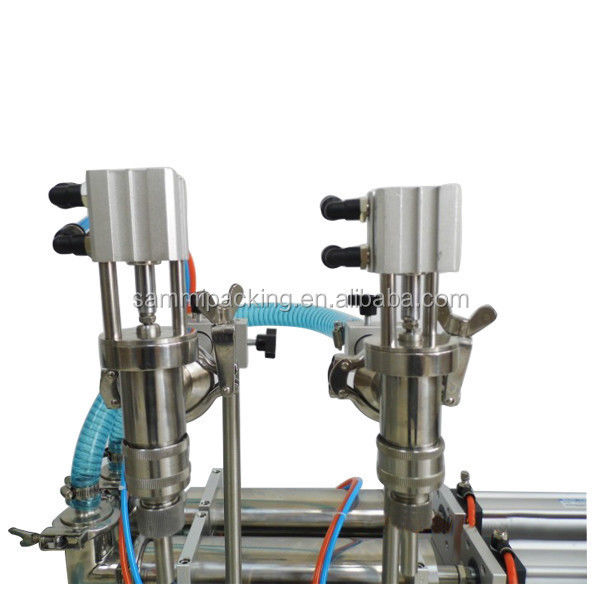

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Application:

Widely used by industries in the Food & Beverage, Cosmetics, Personal

Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields

.And it is an ideal device for low viscosity fluid filling.

Principle

GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

Technical Parameters:

Machine model	GFA-W-2Y -100	GFA-W-2Y -300	GFA-W-2Y -500	GFA-W-2Y -1000	GFA-W-2Y 3000	GFA-W-2Y -5000
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	30 Kg	35Kg	40Kg	45Kg	60 Kg	80 Kg

Machine can offer customized according to customer request
